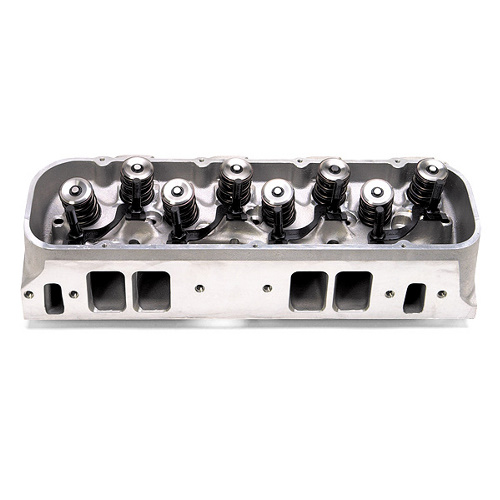

The best standard port location cylinder head available for B/B Chevys, the Victor 24Á features a rolled over deck, altered valve locations and partially CNC'd chambers for cost effective performance. Starting with a A356 aluminum casting „ heat treated to T6 spec, they feature an extra thick deck and extra material in the spring pockets for heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete heads with choice of spring packages to suite hydraulic or mechanical camshafts. Choose a hydraulic spring package for flat tappet or roller cams up to .700" lift. Mechanical cam spec heads include Manley dual-spring valve springs & titanium retainers good for up to .880" lift. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow & power. #77439 is a great option for custom porting - seats and guides are included but not installed and the chambers are left unmachined.

Item Code	EDE-77419
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Victor 24Á
Application	Large bore (4.470" and larger) big-block Chevys
Engine Family	CHEVROLET - Big Block
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	119cc
Intake Runner Volume (cc)	340cc
Exhaust Runner Volume (cc)	128cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Shape	Rectangular
Intake Port Location	Standard
Exhaust Port Shape	Round
Exhaust Port Location	Standard
Valves Included	No
Intake Valve Diameter (in)	2.300"
Exhaust Valve Diameter (in)	1.900"
Intake Valve Angle	24 degree
Exhaust Valve Angle	24 degree
Valve Springs Included	No
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
