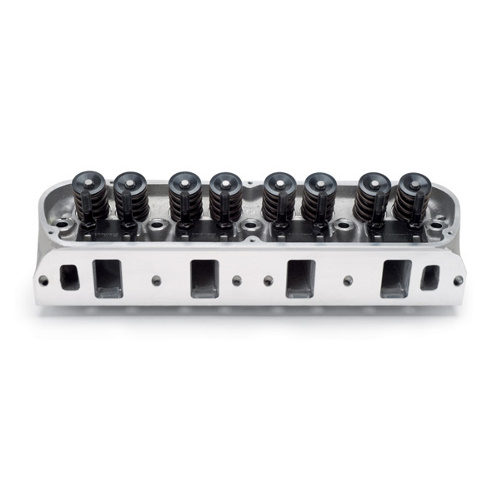

• 500+ horsepower potential out-of-the-box using stock valve train geometry

• Available with 60cc or 70cc combustion chambers

• CNC gasket-matched port entries/exits with blended valve bowls

• Valve cover rail raised .150"
  * A relief in the head allows most roller lifters to be changed without removing heads

Item Code	EDE-77169
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Victor Jr.
Application	1965-95 289, 302, and 351W V8s
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	60cc
Intake Runner Volume (cc)	210cc
Exhaust Runner Volume (cc)	75cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Shape	Rectangular
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Raised 0.130"
Valves Included	No
Intake Valve Diameter (in)	2.050"
Exhaust Valve Diameter (in)	1.600"
Intake Valve Angle	20 degree
Exhaust Valve Angle	20 degree
Valve Springs Included	No
Outside Diameter of Outer Spring (in)	1.550"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
