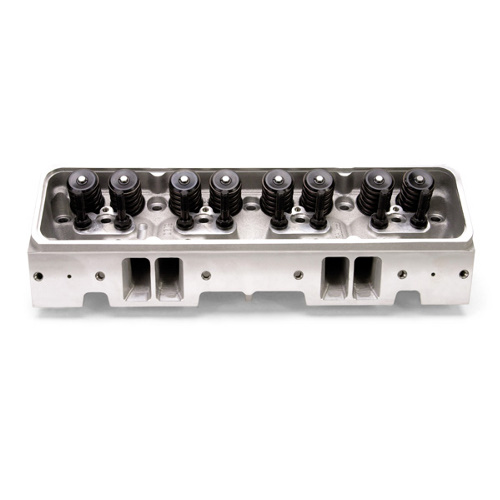

Designed for 1992-97 LT1 small-block Chevy engines, these Performer cylinder heads deliver 24 horsepower over stock and raise the peak power level by 500 rpm. Features include high-quality stainless steel 1.94" intake and 1.55" exhaust valves, 54cc combustion chambers and high flow 170cc intake and 60cc exhaust ports. The high-velocity Intake and exhaust runners are hand blended in the bowl area and the intake entries and exhaust exits are cnc profiled for increased air-flow. These heads are equipped to accept factory style self-aligning rockers. The casting is manufactured of virgin A356 aluminum and heat treated to T6 spec for superior quality. An extra-thick 5/8" deck and Heli-coil threaded inserts offer improved durability. Performer LT1 cylinder heads are 50-state Street legal and accept factory centerbolt valve covers. Match with RPM Air-Gap intake #7107, throttle body #5209 and camshaft #2108 for the Total Power Package combo. Available fully assembled and ready to bolt on or bare for use with your own valve train components. Made in USA.

Item Code	EDE-61919
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Performer
Application	1992-1997 LT1 engines
Engine Family	CHEVROLET - LT-Series V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	54cc
Intake Runner Volume (cc)	170cc
Exhaust Runner Volume (cc)	60cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Shape	Rectangular
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Valves Included	No
Intake Valve Diameter (in)	1.940"
Exhaust Valve Diameter (in)	1.550"
Valve Springs Included	No
Maximum Valve Lift (in)	0.600"
Outside Diameter of Outer Spring (in)	1.460"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
Notes	50-state street legal.
