• Designed for 1968-87 429/460 Fords and the SVO 514 engine

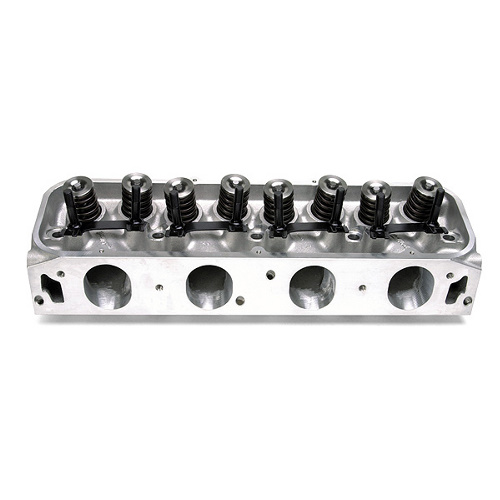

• Victor Jr. heads #61669 are complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts
  * On a 514-inch engine, these heads are capable of 624 hp on 91 octane gasƒ that beats the competition by over 65 horsepower!

Item Code	EDE-61669
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Victor Jr.
Application	1968-87 429/460 Fords and the SVO 514 engine
Engine Family	FORD-LINCOLN-MERCURY - Big Block V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Assembled
Combustion Chamber Volume (cc)	75cc
Intake Runner Volume (cc)	310cc
Exhaust Runner Volume (cc)	100cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Shape	Cobra Jet
Intake Port Location	Standard
Exhaust Port Location	Standard
Valves Included	Yes
Intake Valve Diameter (in)	2.190"
Exhaust Valve Diameter (in)	1.760"
Valve Springs Included	Yes
Maximum Valve Lift (in)	0.730"
Outside Diameter of Outer Spring (in)	1.580"
Retainers Included	Yes
Retainer Material	Titanium
Rocker Arm Studs Included	Yes
Rocker Arm Nuts Included	No
Rocker Arm Nut Thread Size	7/16"
Rocker Arms Included	No
Guideplates Included	Yes
Guideplate Pushrod Diameter (in)	3/8"
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
