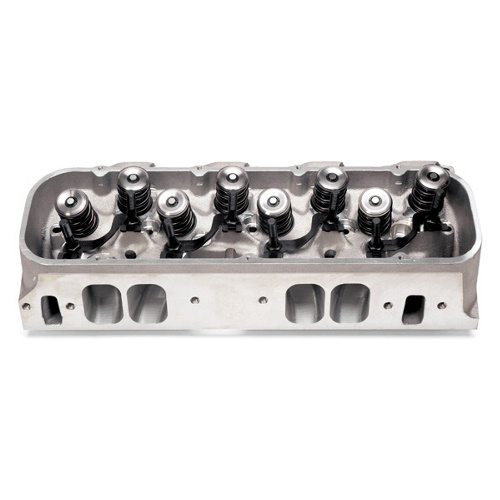

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. Starting with EdelbrockÍs 24Á, A356 aluminum casting that is heat treated to T6 spec, these heads feature an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete heads with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow _ out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock for applications.

Item Code	EDE-61419
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Edelbrock/Musi Victor 24Á Pro-Port CNC
Application	C/BB
Engine Family	CHEVROLET - Big Block
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	114cc
Intake Runner Volume (cc)	367/377cc
Exhaust Runner Volume (cc)	128cc
CNC Machined Combustion Chamber	Yes
CNC Machined Intake Runner	Yes
CNC Machined Exhaust Runner	Yes
Combustion Chamber Style	Standard
Intake Port Shape	Rectangular
Intake Port Location	Standard
Exhaust Port Shape	Round
Exhaust Port Location	Raised
Valves Included	No
Intake Valve Diameter (in)	2.300"
Exhaust Valve Diameter (in)	1.900"
Intake Valve Angle	24 degree
Exhaust Valve Angle	24 degree
Valve Springs Included	No
Maximum Valve Lift (in)	0.880"
Outside Diameter of Outer Spring (in)	1.635"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
