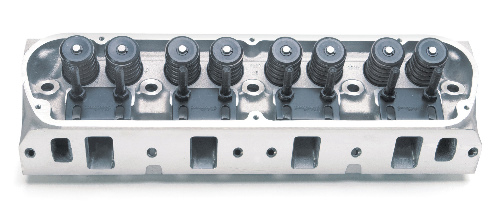

• Designed for non-emissions 289, 302, and 351-Windsor Ford engines

• 1.90" intake valves are for use with stock pistons and high-flow 2.02" intake valves work with pistons notched for valve clearance

Item Code	EDE-602519
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Performer RPM
Application	Non-emission 289, 302, and 351-Windsor Ford engines
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material	Aluminum
Finish	Polished
Cylinder Head Style	Assembled
Combustion Chamber Volume (cc)	60cc
Intake Runner Volume (cc)	170cc
Exhaust Runner Volume (cc)	60cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Location	Standard
Exhaust Port Location	Standard
Valves Included	Yes
Intake Valve Diameter (in)	2.020"
Exhaust Valve Diameter (in)	1.600"
Valve Springs Included	Yes
Maximum Valve Lift (in)	0.575"
Outside Diameter of Outer Spring (in)	1.460"
Retainers Included	Yes
Rocker Arm Studs Included	Yes
Rocker Arm Nuts Included	No
Rocker Arm Nut Thread Size	3/8"
Rocker Arms Included	No
Guideplates Included	Yes
Guideplate Pushrod Diameter (in)	5/16"
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
