• Designed for non-emissions 289, 302, and 351-Windsor Ford engines

• 1.90" intake valves are for use with stock pistons and high-flow 2.02" intake valves work with pistons notched for valve clearance

Item Code	EDE-60249
Vendor Name	Edelbrock

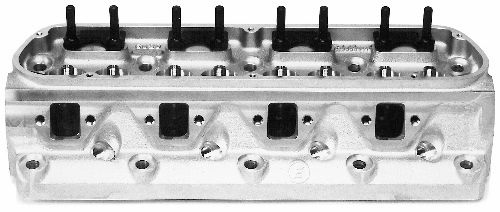

Product Type	Cylinder Head
Product Model	Performer RPM
Application	Non-emission 289, 302, and 351-Windsor Ford engines
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	60cc
Intake Runner Volume (cc)	170cc
Exhaust Runner Volume (cc)	60cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Location	Standard
Exhaust Port Location	Standard
Valves Included	No
Intake Valve Diameter (in)	2.020"
Exhaust Valve Diameter (in)	1.600"
Valve Springs Included	No
Maximum Valve Lift (in)	0.575"
Outside Diameter of Outer Spring (in)	1.460"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
