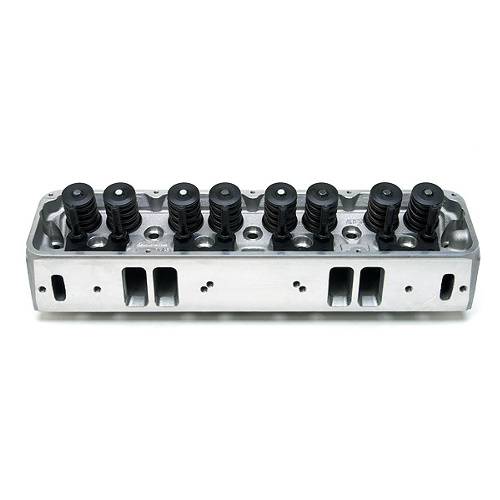

Bolt-on Edelbrock performance for AMX, Javelin, Jeep and more. Designed for 1967-91 343, 360, 390 and 401 AMC engines. These heads include adjustable rocker stud and guide plate set-up for use with smallblock Chevy style adjustable 1.5:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. Complete heads include larger-than-stock valve springs to handle most high-lift cams. Features stock location intake ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, these heads include step-dowel pins for pre-1970 engines. Dual-quench combustion chamber produces approximately 9.5:1 compression in 401 V8s. 45Á intake seat angle offers improved mid- to high-lift flow over the stock 30Á angle. Performer heads #60129/#60139 have a machined heat crossover for 50-state emissions legal performance. Made in USA.

Item Code	EDE-60109
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Performer RPM
Application	AMC/Jeep (No exhaust crossover port)
Engine Family	AMC/JEEP - V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	54cc
Intake Runner Volume (cc)	185cc
Exhaust Runner Volume (cc)	70cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Location	Standard
Exhaust Port Location	Standard
Valves Included	No
Intake Valve Diameter (in)	2.020"
Exhaust Valve Diameter (in)	1.600"
Valve Springs Included	No
Outside Diameter of Outer Spring (in)	1.550"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Heat Crossover	No
Quantity	Sold individually.
