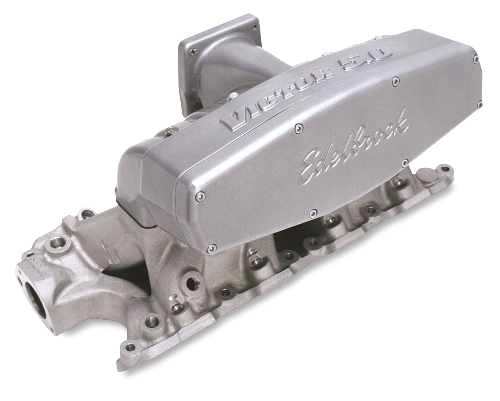

Designed for 5.0L-based competition EFI engines, the Victor 5.0 EFI aluminum intake manifold is for non-emission, racing applications. Intended for engines modified to produce 400 to 540+ horsepower, this intake manifold features a race-proven design with shorter, larger runners for power to 7500 rpm. Runners are 11.5" long and 50% larger in area than Performer 5.0 #3821 runners. The base features an air-gap design to isolate the manifold from hot oil in the valley, and will accept stock or stock replacement fuel rails. The upper manifold will clear tall valve covers and large fuel pressure regulators. The upper and plenum cover are powder-coated light titanium gray. The base is as-cast and not powdercoated. Designed to work with Edelbrock cylinder heads, see Victor Jr. or Victor cylinder heads. Edelbrock 75mm throttle body is recommended for most applications with no EGR spacer. Larger injectors will be needed depending upon power levels. 1994-95 Mustangs require conversion to '87-93 inlet systems. Manifold includes throttle cable bracket.

Item Code	EDE-2944
Vendor Name	Edelbrock
Product Type	Intake Manifold
Product Model	Victor 5.0
Application	Ford 5.0, Non EGR
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8
Finish	Satin
Delivery Type	EFI
Basic Operating Range	4000-7500 RPM
