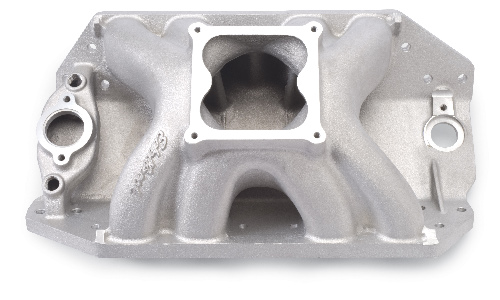

Designed for large cubic-inch or high rpm drag racing big-blocks with Dart Big Chief or Brodix Big Duke cylinder heads, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop.

Item Code	EDE-2805
Vendor Name	Edelbrock
Product Type	Intake Manifold
Product Model	Big Victor Spread-Port
Application	Chevy Big Block with Brodix Big Duke heads, 9.8" Deck, Dominator carb flange
Engine Family	CHEVROLET - Big Block V8
Finish	Satin
Delivery Type	Carbureted
Carburetor Quantity	Single
Basic Operating Range	3500-8500 RPM
