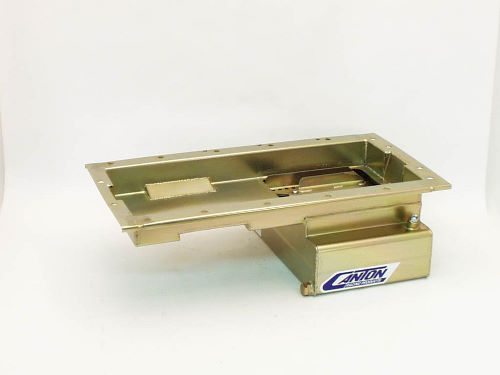

Canton Engine Swap Oil Pan - Ford 4.6L/5.4L

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.

Call For Price and Availability!

Videos

This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.

The Pan Features:
* Road Race Baffle Assembly With Five
Trap Doors
* Removable Windage/Anti-Slosh Baffle
* 1/2" NPT Temperature Bung
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
