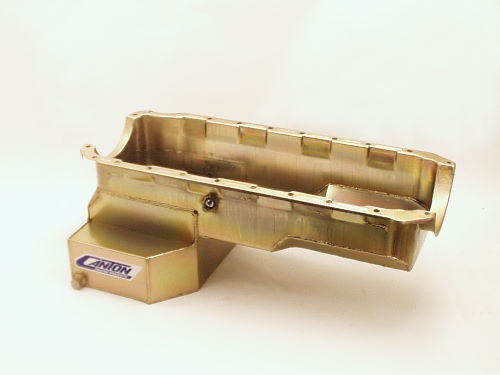

This BBC early Chevelle pan is for standard Mark 4 Big Blocks with a 2 piece rear seal. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity. This pan requires our 20-190 pickup.

The Pan Features:
* Pan Retains Stock Depth & Can Clear a
4.25" Stroke
* Crank Scraper
* Slosh Baffle
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
