Probe Industries FPS Pistons - Ford 351C Flat Top -3.0cc

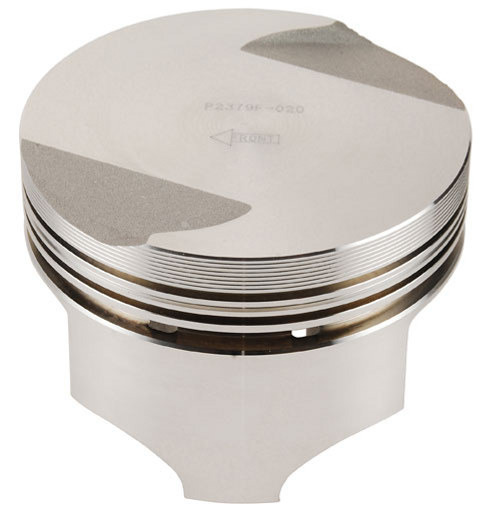

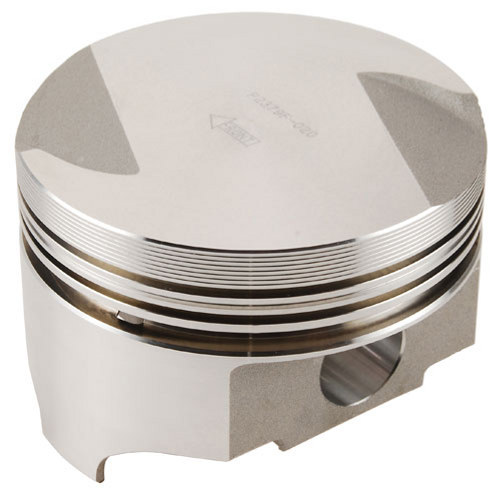

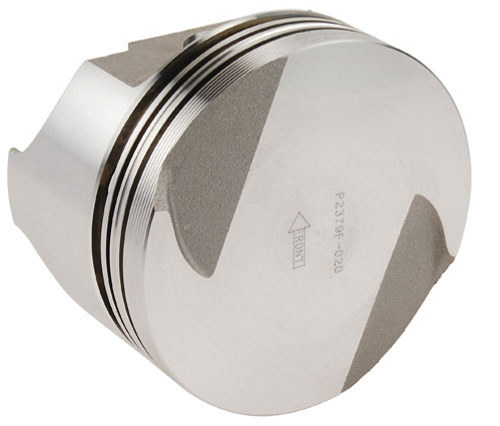

Ford 351C -3.0cc Flat Top FPS Pistons



Alternative Views:


Available Part Numbers/Oversize

P2379F-030 - 4.020
P2379F-030 - 4.030
P2379F-040 - 4.040

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins for quiet operation (in select applications)
  • Press-fit or floating wrist pins(do not use locks in press-fit applications)

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P2379F-020 FPS Pistons - Ford 351C Flat Top -3.0cc (+.020)
$0.00
P2379F-030 FPS Pistons - Ford 351C Flat Top -3.0cc (+.030)
$0.00
P2379F-040 FPS Pistons - Ford 351C Flat Top -3.0cc (+.040)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP2379F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
351
Engine FamilyFORD - 351 Cleveland Based V8
Material4032 Forged Aluminum
Base Bore
4.000
Stroke
3.500
Rod Length
5.788
Compression Height
1.647
Top TypeFlat Top
Net Head Volume
-3.0
Deck Thickness
.450
Valve Pocket Diameter
2.150 Intake - 1.700 Exhaust
Valve Pocket Depth
.270/.150 Intake .200 Exhaust
Weight Without Pin
582
Wrist Pin Diameter
.912
Wrist Pin Length
3.010
Wrist Pin Weight
146
Wrist Pin Placement
Centered
Pin Lock TypeDouble Spiral (press-fit may be used)
Ring Set
40564CP
Top Ring Groove
5/64
Second Ring Groove
5/64
Oil Ring Groove
3/16
Top Ring Land
.400
Second Ring Land
.190
Bottom Ring Land
.100
QuantitySold in sets of 8.




Compression Ratio:

Part Number
Cylinder Head Volume
58.0cc64.0cc68.0cc76.0cc
P2379F-02011.1810.409.939.14
P2379F-03011.2310.449.979.17
P2379F-04011.2710.4810.019.21
