PRO STREET Engine Kit - Ford 347 Dome Top +9.0cc Twisted Wedge

Ford 347 Dome Top +9.0cc Pro Street Engine Kit

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.

The Pro-Street Engine Kits are capable of handling extremely high horsepower levels.Cog belt blowers, big power adders, and high rpm are the playground of our Pro-Street Engine Kits. Featuring forged steel crankshafts, lightweight forged steel connecting rods, and forged pistons. They provide an excellent level of reliability in a brutal environment.

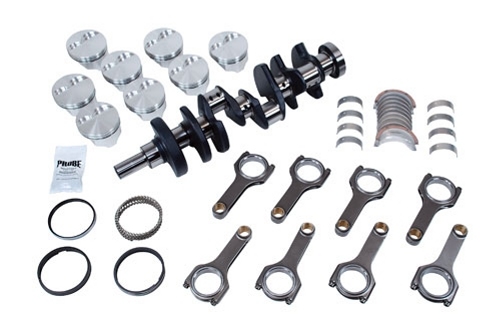

Pro-Street kits Include:

Forged Pistons
CHP Forged Steel Crankshafts
CHP Forged 4340 H-Beam Rods
Total Seal Rings
King High Performance Engine Bearings

Item#	Item Name	CHP Price	Qty	Add
10485-030-PS-F347	PRO STREET Engine Kit - Ford 347 Dome Top +9.0cc (+.030")	$0.00
10485-040-PS-F347	PRO STREET Engine Kit - Ford 347 Dome Top +9.0cc (+.040")	$0.00
10485-STD-PS-F347	PRO STREET Engine Kit - Ford 347 Dome Top +9.0cc (STD)	$0.00
Check the items you wish to purchase, then click

Videos
:

To select an accessory, click in the appropriate "Add" box below, then click the "Add To Cart" button above.

See why we prefer 28oz. balancing over 50oz. balancing.

Item	Racer Price	Add
	$200.00
	$108.99
	$188.99
	$75.99
	$75.99
	$249.99

Technical Specs:

Item Code	10485-PS-F347
Vendor Name	Probe Industries
Product Type	Engine Kit
Product Model	Pro Street
Engine Displacement (cu.in.)	347
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8
Balanced	No
Piston Manufacturer	Probe Industries
Piston Part Number	10485
Piston Material	2618-t61 Forged Aluminum
Piston Top Type	Dome Top
Piston Head Volume (CC)	+9.0cc
Piston Base Bore (in)	4.000
Piston Compression Height (in)	1.090
Ring Type	Moly-Pre Fit
Crankshaft Vendor	Probe Industries
Crankshaft Part Number	10052
Crankshaft Material	4340 Forged Steel
Crankshaft Stroke (in)	3.400
Crankshaft Main Journal Size (in)	2.248
Crankshaft Rod Journal Size (in)	2.123
Connecting Rod Vendor	Probe Industries
Connecting Rod Part Number	11260
Connecting Rod Material	4340 Forged Steel
Connecting Rod Length (in)	5.400
Connecting Rod Type	H-Beam
Notes	Piston dome designed for Twisted Wedge heads only.

Compression Ratio:

Part Number	Cylinder Head Volume
Part Number	58.0cc	61.0cc	64.0cc	68.0cc
10485-030	12.94	12.36	11.84	11.22
10485-040	12.99	12.41	11.89	11.26
10485-STD	12.79	12.22	11.71	11.09
