PRO STREET Engine Kit - Chevy 406 Flat Top -4.0cc

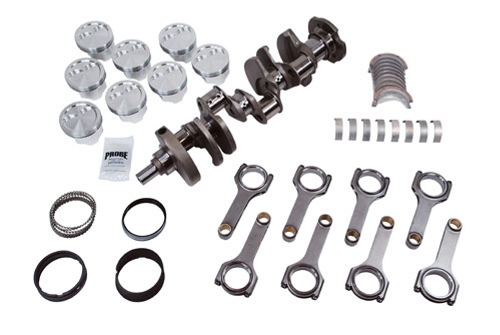

Chevy 406 Flat Top -4.0cc Pro Street Engine Kit

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.


The Pro-Street Engine Kits are capable of handling extremely high horsepower levels.Cog belt blowers, big power adders, and high rpm are the playground of our Pro-Street Engine Kits. Featuring forged steel crankshafts, lightweight forged steel connecting rods, and forged pistons. They provide an excellent level of reliability in a brutal environment.

Pro-Street kits Include:

  • Forged Pistons
  • CHP Forged Steel Crankshafts
  • CHP Forged 4340 H-Beam Rods
  • Total Seal Rings
  • King High Performance Engine Bearings

Item# Item Name CHP Price Qty Add
12339-030-PS-C406 PRO STREET Engine Kit - Chevy 406 Flat Top -4.0cc (+.030")
$0.00
12339-040-PS-C406 PRO STREET Engine Kit - Chevy 406 Flat Top -4.0cc (+.040")
$0.00
12339-STD-PS-C406 PRO STREET Engine Kit - Chevy 406 Flat Top -4.0cc (STD)
$0.00
Check the items you wish to purchase, then click


Videos
:

To select an accessory, click in the appropriate "Add" box below, then click the "Add To Cart" button above.

ItemRacer PriceAdd
$200.00




Technical Specs:
Item Code12339-PS-C406
Vendor NameProbe Industries
Product TypeEngine Kit
Product ModelPro Street
Engine Displacement (cu.in.)406
Engine FamilyCHEVROLET - Small Block V8
BalancedNo
Piston ManufacturerProbe Industries
Piston Part Number12339
Piston Material2618-t61 Forged Aluminum
Piston Top TypeFlat Top
Piston Head Volume (CC)-4.0cc
Piston Base Bore (in)4.125
Piston Compression Height (in)1.125
Ring TypeMoly-Pre Fit
Crankshaft VendorProbe Industries
Crankshaft Part Number10047
Crankshaft Material4340 Forged Steel
Crankshaft Stroke (in)3.750
Crankshaft Main Journal Size (in)2.648
Crankshaft Rod Journal Size (in)2.100
Connecting Rod VendorProbe Industries
Connecting Rod Part Number10078
Connecting Rod Material4340 Forged Steel
Connecting Rod Length (in)6.000
Connecting Rod TypeH-Beam




Compression Ratio:
Part NumberCylinder Head Volume
58.0cc64.0cc68.0cc76.0cc
12339-03012.3911.5211.0210.14
12339-04012.4311.5711.0610.18
12339-STD12.2511.3910.8910.02
