CP Bullet Pistons - Chevrolet 454 - 1.400 C/H - 4.250 Base Bore - Dome - 24.4cc
CP Bullet Forged Pistons

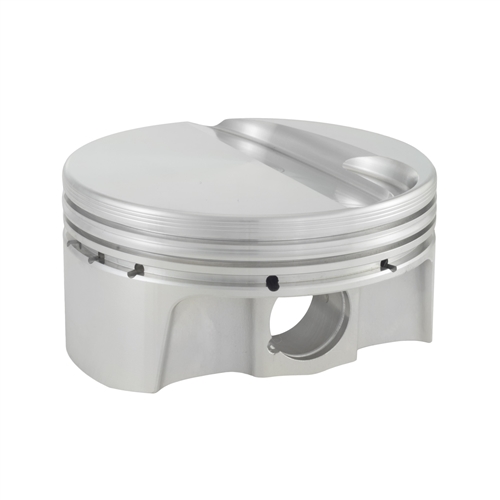

Photo may not be actual product




Available Part Numbers/Oversize

CPP-BBC5112-030 - 4.280
CPP-BBC5112-060 - 4.310

CP Bullet Forged Pistons

The Game Has Changed

As the global economic climate continues to change, CP-Carrillo is proud to announce a new product division to stay current as the industry shifts to new directions. This series of pistons and rods will be the flagship for this new venture and will incorporate everything that has made CP-Carrillo the industry leader. Inspired by the top forms of motorsports, the goal is to offer a piston and rod alternative by introducing a high quality product at a reasonable price. Whether it is engineering or manufacturing, CP-Carrillo is constantly looking for ways to make their parts better. Extensive research and development along with centralized manufacturing cells have enabled CP-Carrillo to accomplish this goal and pass along the savings to our customers.

CP Bullet Series Pistons

Features Included:

Pistons manufactured from 2618 alloy for strength and durability

  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1/16 x 1/16 x 3/16 ring pack)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made
  • Price includes pistons and oil rail spacers (as required), wrist pins, spiral locks and piston rings.

Item# Item Name Price Qty Add
CPP-BBC5112-030 CP Bullet Pistons - Chevrolet 460 - Dome - 4.280 Bore (.030) - 24.4cc
$0.00
CPP-BBC5112-060 CP Bullet Pistons - Chevrolet 467 - Dome - 4.310 Bore (.060) - 24.4cc
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item Code CPP-BBC5112
Vendor CP Pistons
Product Type Pistons
Product Model Bullet Series
Engine Displacement 454
Nitrous Not recommended
Forced Induction Not recommended
Engine Family Chevrolet - 454 Based V8
Material 2618-t61 Forged Aluminum
Base Bore 4.250
Stroke 4.000
Rod Length 6.385
Compression Height 1.400
Top Type Dome Top
Net Head Volume 24.4
Dome Height .250
Deck Thickness
Valve Pocket Location BBC Standard
Valve Pocket Cutters
Valve Pocket Depth .295 Intake / Slant Cut Exhaust
Weight Without Pin 606
Wrist Pin Type 5100 Straight Wall
Wrist Pin Diameter .990
Wrist Pin Length 2.750
Wall Thickness .150
Wrist Pin Weight 135
Pin Lock Type Wire
Ring Grooves 1/16 1/16 3/16
Moly Ring Set TOT-CR9190
Steel Ring Set TOT-CS9190
Oil Rail Spacer No
Rings Included Yes
Ring Lands
Quantity Sold in sets of 8
Notes:




Compression Ratio:

 Cylinder Head Volume
Part Number Net cc 109cc 114cc 118cc 123cc
CPP-BBC5112-030 24.4 10.73 10.25 9.90 9.50
CPP-BBC5112-060 24.4 10.84 10.36 10.01 9.61
Computed with .010 deck and .041 gasket
