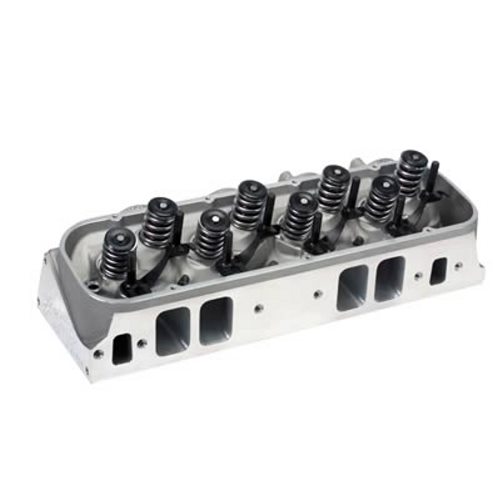

AFR 265cc Chevy Big Block As Cast Oval Port Magnum Cylinder Heads w/ CNC Chambers, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
Want to wake up the Big Block in your favorite tow vehicle? AFR's 265cc high-velocity oval port is just the ticket! They are also ideal on smaller cubic inch street performance applications (396-468 cid), providing "gobs" of bottom end torque, tremendous throttle response, and great all around power. With AFR's trademark 3/4" deck, reinforced rocker stud bosses, and thick rugged castings, you can own the strongest and most efficient heads on the market today. Premium hardware such as 2.190/1/880 one piece stainless valves, 1.550 double springs, 10 degree locks and retainers, and high quality studs and guide plates all come as standard equipment. Take note the higher flowing exhaust ports are raised .375 over stock location, and therefore these heads might not be a direct bolt-on in every application. These heads have no EGR and are not emissions legal. Note: Optional stud girdle required for 2Á rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Chevrolet Big Block - 265cc Competition Package Ported Heads, Bare - 121cc Combustion Chambers
Item Code
3600-1
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Magnum - "As Cast" Competition Package Ported Heads
Engine Displacement (cu.in.)
396-468
Engine Family
CHEVROLET - Big Block
Material
Aluminum
Cylinder Head Style
Bare
Combustion Chamber Volume (cc)
121cc
Intake Runner Volume (cc)
265cc
Exhaust Runner Volume (cc)
115cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
No
CNC Machined Exhaust Runner
No
Valves Included
No
Valve Springs Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
No
Heat Crossover
No
Quantity
Sold as a pair.
