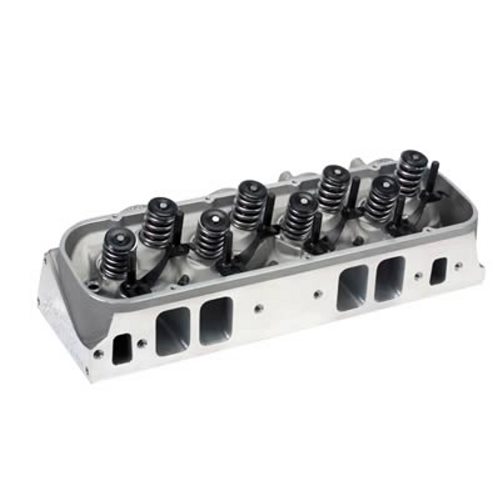

AFR 305cc Chevy Big Block As Cast Magnum Head, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
The smallest intake volume runners in our line-up, but donÍt let size fool you. Our 305cc ñAs Castî with CNC bowl blend or fully CNC ported 315cc aluminum cylinder heads will provide you with flow numbers most medium sized heads, and some larger, can only dream about. This line was designed to optimize low and mid-lift airflow, while still generating impressive peak figures. Their application should be focused on smaller cubic inch Big Blocks (396-502), with a primary operating range of 2500-6800 rpmÍs (this range is an average and will vary with engine displacement as well as component selection). These heads should also be given strong consideration in larger street driven or marine applications up to 555 CID, where low rpm power and drivability are a factor. The 315 version is extremely versatile with its incredibly strong low and midlift airflow figures as well as peak numbers approaching the 400 CFM mark. Either one of these two cylinder heads would be a great choice if your looking for big torque, strong low rpm performance, and still have good rpm capabilities. Both the 305cc and the 315cc come standard with AFRÍs trademark .750î thick head deck, reinforced rocker stud bosses, and are equipped with premium one piece stainless steel 2.250î intake valves and 1.880î exhaust valves. Standard combustion chamber volume is 119 ccÍs on the 305 ñAs Castî pieces, while our fully CNC ported 315cc version comes with a 121cc chamber. Both are available with an optional 114cc combustion chamber as well. Chevrolet Big Block - 305cc Competition Package Ported Heads, Assembled - 119cc Combustion Chambers
Item Code
2100
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Magnum - Competition Package Ported Heads
Engine Displacement (cu.in.)
396-502
Engine Family
CHEVROLET - Big Block
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
119cc
Intake Runner Volume (cc)
305cc
CNC Machined Combustion Chamber
No
CNC Machined Intake Runner
No
CNC Machined Exhaust Runner
No
Valves Included
Yes
Intake Valve Diameter (in)
2.250"
Exhaust Valve Diameter (in)
1.880"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.750"
Outside Diameter of Outer Spring (in)
1.625"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
Yes
Quantity
Sold as a pair.
