Home
>
Cylinder Heads
>
Chevrolet - Big Block V8
>
Aluminum Cylinder Heads
>
Assembled
>

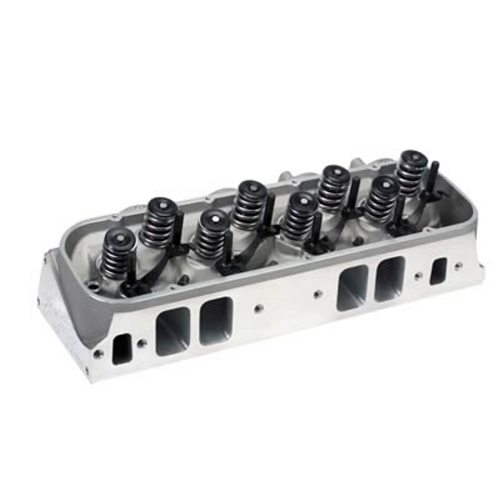

AFR 357cc Chevy Big Block Fully CNC Ported Magnum Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
If ñDirty Harryî drove a racecar, it would certainly be fitted with a pair of our 345 or 357 ñMagnumî aluminum cylinder heads. If huge horsepower is what you are searching for, either of these castings will certainly deliver. With our Race Ready ñAs Castî 345cc flirting with 400 CFM and our fully CNC ported 357cc flowing 425 CFM, these cyilnder heads represent the ultimate in airflow for your BB Chevrolet. Our 357 ñMagnumî flows over 415 CFM @ .700 valve lift! No other production style BB Chevy head even comes close. Both of these cyilnder heads were targeted at larger cubic inch engines (509-632 CID) looking for maximum horsepower and rpm capability with a primary operating range of 3500-8000 rpmÍs (This range is an average and will vary with engine displacement and component selection). As well, these aluminum heads provide impressive torque figures at higher rpm levels. Blown, turbo, and nitrous engines will especially like the larger, higher flowing intake ports. Both of these heads will work best with camshafts exceeding .750 gross valve lift to make better use of the substantial airflow found in the higher lift range. Both the 345cc and the 357cc come standard with AFRÍs trademark .750î thick cylinder head deck, reinforced rocker stud bosses, and are equipped with premium one piece stainless steel 2.300î intake valves and 1.880î exhaust valves. Standard combustion chamber volume is 119ccÍs on the 345 ñAs Castî pieces, while our fully CNC ported 357 version comes with a 121cc chamber. Both are available with an optional 114cc combustion chamber as well. Note: Optional stud girdle required for 2Á rolled valve angles and 1î longer head bolts needed on four bottom exhaust bolt holes. Chevrolet Big Block - 357cc Competition Package Ported Heads, Assembled - 121cc Combustion Chambers
Item Code
2010
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Magnum - Competition Package Ported Heads
Engine Displacement (cu.in.)
509-632
Engine Family
CHEVROLET - Big Block
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
121cc
Intake Runner Volume (cc)
357cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.300"
Exhaust Valve Diameter (in)
1.880"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.750"
Outside Diameter of Outer Spring (in)
1.625"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
Yes
Quantity
Sold as a pair.
