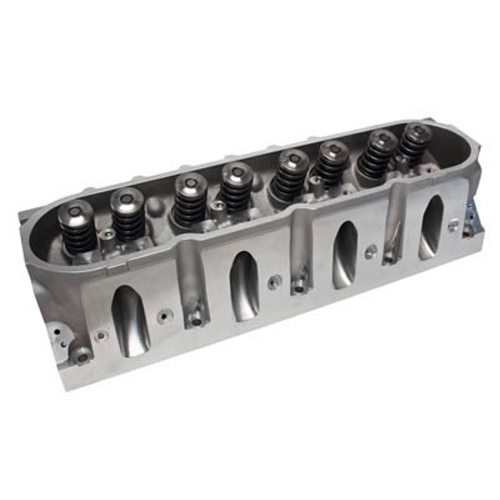

AFR 225cc Chevy LS1 Mongoose Strip Aluminum Cylinder Heads, Bare
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
For the maximum street/strip LS1/LS2/LS6 aluminum cylinder heads AFRÍs all new 225cc emission legal head E/O #D250-4 are hands down the best choice. Specifically designed for 1997 to present Gen-3 Chevy Corvettes, Camaros, and trucks. AFRÍs LS1 head offers unmatched flow performance and features 2.080 intake and 1.600 exhaust valves with AFRÍs iron ductile interlocking valve seats. The 225cc is ideal for normally aspirated 396C.I. to 427C.I. For a wild 346 ci the 225 is a good choice, however some low RPM loss of torque might occur. It is available with 62cc, 65cc, and 72cc combustion chambers. AFRÍs LS1 is a direct bolt on, no special parts required. Structural features like Air Flow ResearchÍs trademark 3/4î thick head deck, a must for blown and nitrous applications, reinforced rocker stud bosses and thick wall runners provide unparalled durability. An exclusive new modern combination chamber design with double quench pad area helps the LS1 generate huge low and mid lift airflow numbers. If you need a snake charmer for that pesky neighborhood ñCobra Mustangî look no further! Chevrolet LS1 Small Bore - 225cc CNC Street Ported Heads, Bare - 65cc Combustion Chambers
Item Code
1670
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Mongoose - CNC Street Porting
Engine Displacement (cu.in.)
396-427
Engine Family
CHEVROLET - LS Series
Material
Aluminum
Cylinder Head Style
Bare
Combustion Chamber Volume (cc)
65cc
Intake Runner Volume (cc)
225cc
Exhaust Runner Volume (cc)
85cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
No
Valve Springs Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
No
Heat Crossover
Yes
Quantity
Sold as a pair.
