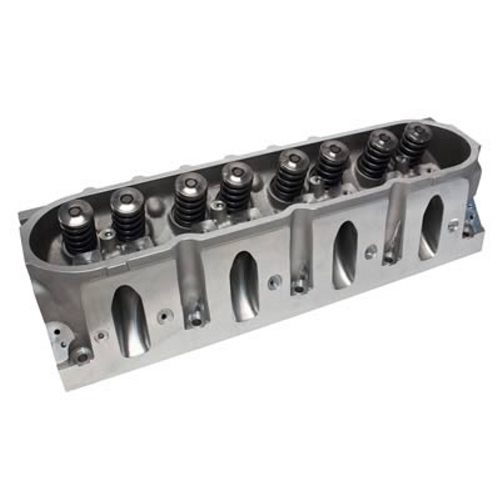

AFR 205cc Chevy LS1 Mongoose "As Cast" Street Head, Bare
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
For the ultimate street LS1/LS2/LS6 aluminum cylinder head AFRÍs all new 205cc emission legal cylinder heads E/O # D250-4 are your only choice. Specifically designed for 1997 to present Gen-3 Chevy Corvettes, Camaros, and trucks. AFRÍs LS1 head offers unmatched flow performance (298 CFM at .600lift) and features 2.020 intake and 1.600 exhaust valves with AFRÍs iron ductile interlocking valve seats. With only 205cc port volume (same as stock LS1 head) this is an incredibly 70 CFM increase over stock casting creating unbelievable port velocity and performance. The 205cc is ideal for normally aspirated 346C.I. to 396C.I. It is available with 66cc and 76cc combustion chambers. AFRÍs LS1 is a direct bolt on, no special parts required. Structural features like Air Flow ResearchÍs trademark 3/4î thick head deck, a must for blown and nitrous applications, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. An exclusive new modern combustion chamber design with double quench pad area helps the LS1 generate huge low and mid lift airflow numbers. If you need a snake charmer for that pesky neighborhood ñCobra Mustangî look no further. Chevrolet LS1 - 205cc "As Cast" Heads - 64cc Combustion Chambers - Bare Heads
Item Code
1541
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Mongoose - As Cast
Engine Displacement (cu.in.)
346-396
Engine Family
CHEVROLET - LS Series
Material
Aluminum
Cylinder Head Style
Bare
Combustion Chamber Volume (cc)
64cc
Intake Runner Volume (cc)
205cc
Exhaust Runner Volume (cc)
84cc
CNC Machined Combustion Chamber
No
CNC Machined Intake Runner
No
CNC Machined Exhaust Runner
No
Valves Included
No
Valve Springs Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
No
Heat Crossover
Yes
Quantity
Sold as a pair.
