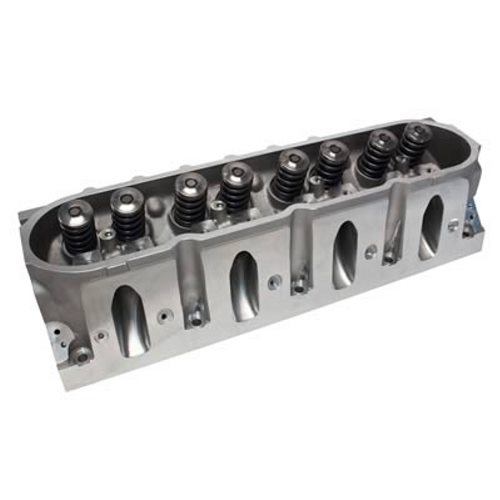

AFR 205cc Chevy LS1 Mongoose Street Head, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
For the ultimate street LS1/LS2/LS6 aluminum cylinder head AFRÍs all new 205cc emission legal cylinder heads E/O # D250-4 are your only choice. Specifically designed for 1997 to present Gen-3 Chevy Corvettes, Camaros, and trucks. AFRÍs LS1 head offers unmatched flow performance (298 CFM at .600lift) and features 2.020 intake and 1.600 exhaust valves with AFRÍs iron ductile interlocking valve seats. With only 205cc port volume (same as stock LS1 head) this is an incredibly 70 CFM increase over stock casting creating unbelievable port velocity and performance. The 205cc is ideal for normally aspirated 346C.I. to 396C.I. It is available with 66cc and 76cc combustion chambers. AFRÍs LS1 is a direct bolt on, no special parts required. Structural features like Air Flow ResearchÍs trademark 3/4î thick head deck, a must for blown and nitrous applications, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. An exclusive new modern combustion chamber design with double quench pad area helps the LS1 generate huge low and mid lift airflow numbers. If you need a snake charmer for that pesky neighborhood ñCobra Mustangî look no further. Chevrolet LS1 - 205cc CNC Street Ported Heads - 66cc Combustion Chambers - Fully Assembled
Item Code
1510
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Mongoose - CNC Street Porting
Engine Displacement (cu.in.)
346-396
Engine Family
CHEVROLET - LS Series
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
66cc
Intake Runner Volume (cc)
205cc
Exhaust Runner Volume (cc)
84cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.020"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
1
Maximum Valve Lift (in)
.600"
Outside Diameter of Outer Spring (in)
1.290"
Retainers Included
Yes
Retainer Material
Titanium
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
Yes
Quantity
Sold as a pair.
