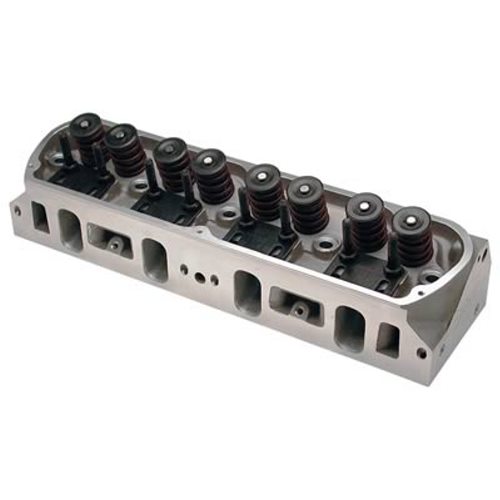

AFR 220cc Ford Small Block Renegade Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
Are you looking for big torque and horsepower number? Only AFRÍs NEW 220cc Renegade Ford is a fresh addition to our lineup that adds quite a punch to our already formidable and proven 20Á Ford Heads. These new 220cc flow a massive 340 CFM, averaging an 11 CFM increase from .200-.800 lift over our previous best in spite of its 5cc smaller intake runner. This is the best small block Ford 20Á inline head you'll find to provide huge horsepower to out run your competition. With the largest intake and exhaust runner volumes for our in-line Ford line up, these are the ultimate for NMRA Renegade or Hot Street classes. With lightweight 8mm 2.100 intake valves and 1.570 exhaust valves these heads move massive amounts of air. Combustion chamber volumes are available in 58cc or 69cc. 80cc exhaust ports and bolt pattern are raised .375 (3/8") higher than stock, this rarely affects header or chassis fitment. AFR's new 220cc is the perfect choice for 347 through 427 CI windsor engines operating from 4500 upwards. Our trademark 3/4î thick cylinder head deck makes them ideal for heavy nitrous or blower applications. Note: 2.100 valves will require aftermarket pistons notched for valve clearance. Ford Small Block - 220cc Race Ready CNC Ported Heads - 58cc Combustion Chambers, Stud Mount Rockers - Fully Assembled
Item Code
1451
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Renegade - Race Ready CNC Ported Heads
Engine Displacement (cu.in.)
347-427W
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
58cc
Intake Runner Volume (cc)
220cc
Exhaust Runner Volume (cc)
80cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.080"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.670"
Outside Diameter of Outer Spring (in)
1.550"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
No
Quantity
Sold as a pair.
