Home
>
Cylinder Heads
>
Ford - 302 Small Block V8
>
Aluminum Cylinder Heads
>
Assembled
>

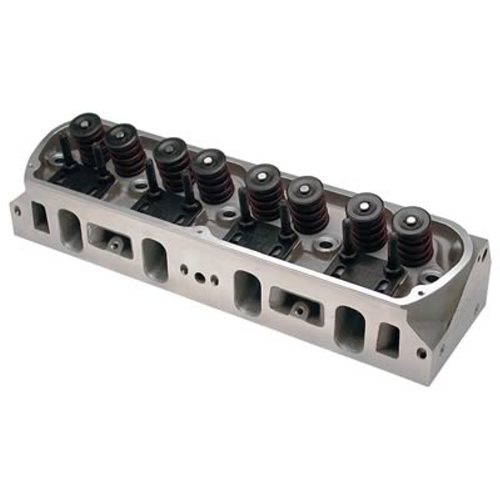

AFR 205cc Ford Small Block Outlaw Race Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
If youÍre looking for the worldÍs finest street/strip head available, AFRÍs 205cc aluminum cyilnder head is your answer. With 2.080 intake valves, 1.600 exhaust valves this head moves tremendous volumes of air through conservative runner volumes, spelling big torque and horsepower numbers. With combustion chamber volumes of 58cc accompanied by 70cc exhaust parts which are raised .125 higher than stock, AFRÍs new 205cc is the ultimate choice for 331 through 392 engines operating from 3500 RPM to 8000 RPM. AFRÍs trademark 3/4î thick head deck makes them ideal for heavy nitrous or blower applications. With available optional nitrous or blower exhaust ports featuring 75cc, 80cc ultra high flow exhaust ports. Note: 2.080 valves will require aftermarket pistons notched for valve clearance. Ford Small Block - 205cc Race Ready CNC Ported Heads - 58cc Combustion Chambers, Stud Mount Rockers - Fully Assembled
Item Code
1450
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Outlaw - Race Ready CNC Ported Heads
Engine Displacement (cu.in.)
331-392
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
58cc
Intake Runner Volume (cc)
205cc
Exhaust Runner Volume (cc)
70cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.080"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.670"
Outside Diameter of Outer Spring (in)
1.550"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
No
Quantity
Sold as a pair.
