Home
>
Cylinder Heads
>
Ford - 302 Small Block V8
>
Aluminum Cylinder Heads
>
Bare
>

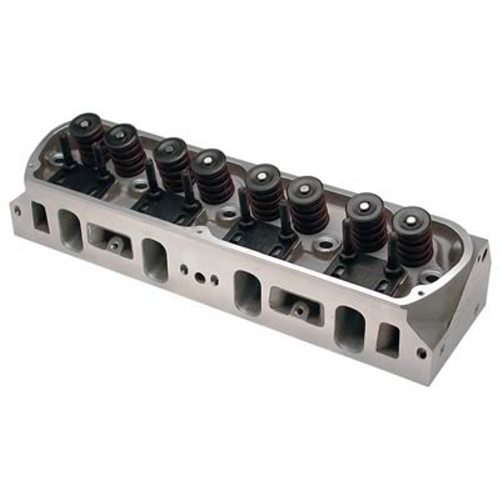

AFR 185cc Ford Small Block Outlaw Street Cylinder Heads, Bare
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
If you need the worldÍs finest street/strip small block Ford head, check out AFRÍs all new 185cc intake port emissions legal (CARB EO #250-3) cylinder heads. With 2.020 intake valves, 1.600î exhaust valves, combustion chamber volumes of 58cc or 61cc, and 69cc exhaust ports, AFRÍs new 185cc Ford head is designed for 302-351 cid engines operating from 1500 rpm to 6500 rpm. A 3/4î thick head deck makes the AFR head ideal for nitrous or blower applications. Will not accept rail rocker arms. Hardened pushrods required with heads #1420 and #1422. High flow 2.020 valves might require aftermarket pistons notched for valve clearance. Note: 1986 5.0L must have pistons notched for clearance. Ford Small Block - 185cc CNC Street Ported Heads - 58cc Combustion Chambers, Stud Mount Rockers - Bare Heads
Item Code
1423
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Outlaw - CNC Street Porting
Engine Displacement (cu.in.)
302-351
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Cylinder Head Style
Bare
Combustion Chamber Volume (cc)
58cc
Intake Runner Volume (cc)
185cc
Exhaust Runner Volume (cc)
69cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
No
Valve Springs Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
No
Heat Crossover
Yes
Quantity
Sold as a pair.
