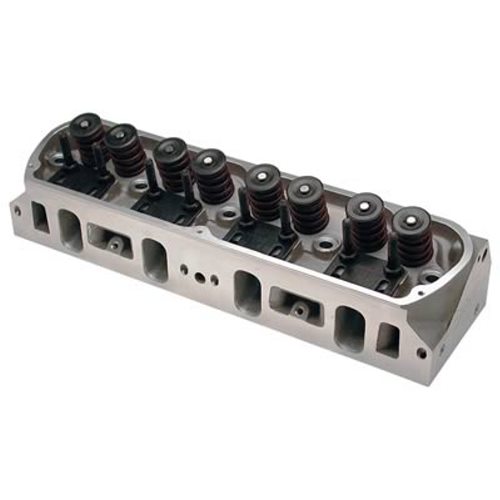

AFR 185cc Ford Small Block Outlaw Street Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
If you need the worlds finest street/strip small block Ford head, check out AFR's all new 185cc intake port emissions legal (CARB EO #250-3) cylinder heads. With 2.020 intake valves, 1.600 exhaust valves, combustion chamber volumes of 58cc or 72cc, and 69cc exhaust ports, AFR's new 185cc Ford head is designed for 302-351 cid engines operating from 1500 rpm to 6500 rpm. A 3/4" thick head deck makes the AFR head ideal for nitrous or blower applications. Will not accept rail rocker arms. Hardened pushrods required with heads #1420 and #1422. High flow 2.020 valves might require aftermarket pistons notched for valve clearance. Note: 1986 5.0L must have pistons notched for clearance. Ford Small Block - 185cc CNC Street Ported Heads - 72cc Combustion Chambers, Stud Mount Rockers - Fully Assembled
Item Code
1420
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Outlaw - CNC Street Porting
Engine Displacement (cu.in.)
302-351
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
72cc
Intake Runner Volume (cc)
185cc
Exhaust Runner Volume (cc)
69cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.020"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.550"
Outside Diameter of Outer Spring (in)
1.450"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
Yes
Quantity
Sold as a pair.
