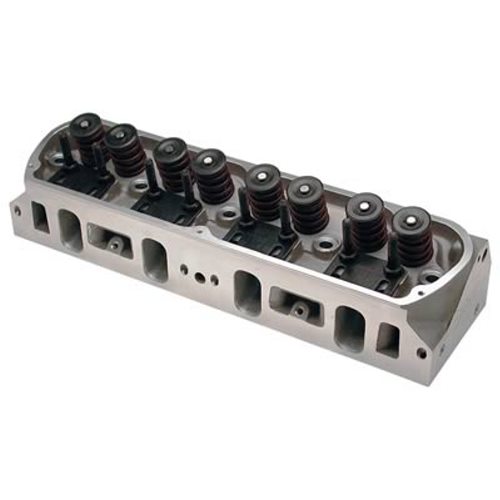

AFR 185cc Ford Small Block Outlaw Street/Strip Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
These aluminum cylinder heads come ready for the maximum street/strip Small Block Ford performance possible. They are not emissions legal. The 165 comes with 1.900 intake and 1.600 exhaust valves and the 185 sports 2.020 intake and 1.600 exhaust valves. Both cylinder heads feature 58cc or 61cc combustion chamber with 69cc exhaust ports. Both the 165cc and 185cc have available as an option nitrous or blower exhaust ports featuring a 75cc ultra high flowing exhaust port. With AFR's trademark 3/4" thick head deck, it's no problem handling that additional cylinder pressure. Each head is also drilled for the larger 1/2" head bolt hole for maximum head gasket retention as a standard feature of this serious race piece in street disguise. Ford Small Block - 185cc CNC Street Ported Heads - 61cc Combustion Chambers, Stud Mount Rockers - Fully Assembled
Item Code
1387
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Outlaw - Street CNC Ported Heads
Engine Displacement (cu.in.)
302-351
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
61cc
Intake Runner Volume (cc)
185cc
Exhaust Runner Volume (cc)
69cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Valves Included
Yes
Intake Valve Diameter (in)
2.020"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.550"
Outside Diameter of Outer Spring (in)
1.450"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
No
Quantity
Sold as a pair.
