Home
>
Cylinder Heads
>
Chevrolet - LT-Series V8
>
Aluminum Cylinder Heads
>
Bare
>

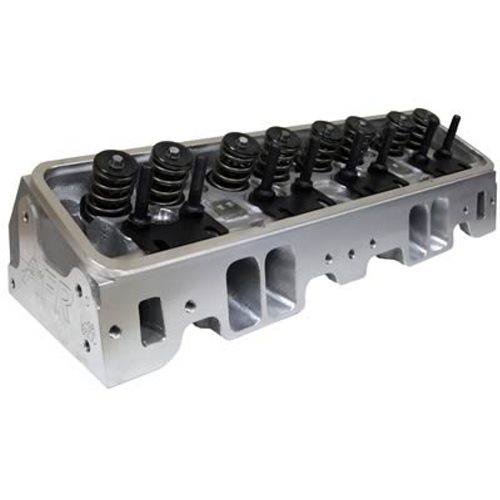

AFR 180cc Chevy LT1 Chevy Small Block Eliminator Street Cylinder Heads, Bare
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
The AFR Emissions Legal (CARB EO #D-250-2 for engines up to 1994), 180cc intake port LT1 small block Chevy cylinder heads are available in the LT1 angle plug version only. These heads feature a 55cc to 65cc combustion chamber with a 64cc exhaust port and a 3/4” thick head deck (ideal for nitrous or blower applications). Standard valves are 2.020 intake and 1.600 exhaust with AFR’s hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of idle to 6000 rpm (higher rpm ranges possible depending on combination of parts), 23º valve angle, and standard valve spacing make this the perfect street head for 350 cid to 383 cid engines and is specifically designed for 1992-95 Corvettes and 1993-97 Camaros. No special parts are required. Dual valve cover bolt pattern is standard. Exhaust port is raised .100 over GM L98 cylinder heads. Note: Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggest you upgrade your springs to AFR part #8047, 1.530 O.D. with higher spring pressures and use our Patented “Hydra Rev Kit” to reduce chances of valve float associated with rpm 6200 or higher. Chevrolet LT1 - 180cc CNC Street Ported Heads - 55cc-65cc Combustion Chambers, L98 Plug - Bare Heads
Item Code
0908NP
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Eliminator - CNC Street Porting
Engine Displacement (liters)
5.7
Engine Family
CHEVROLET - LT Series
Material
Aluminum
Cylinder Head Style
Bare
Combustion Chamber Volume (cc)
55cc-65cc
Intake Runner Volume (cc)
180cc
Exhaust Runner Volume (cc)
64cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Spark Plug Style/Type
L98
Valves Included
No
Valve Springs Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
No
Heat Crossover
Yes
Quantity
Sold as a pair.
